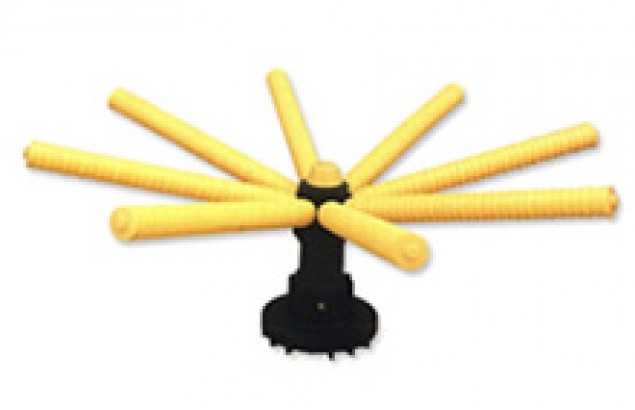

8 Kollu Ahtapot Difüzör
Yandan Montaj Tanklar için

Tank Aksesuarları

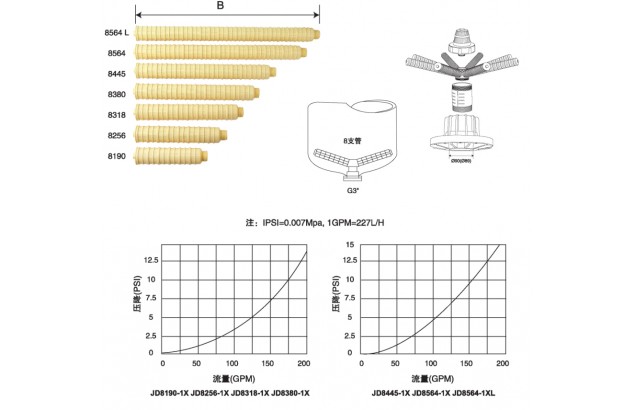

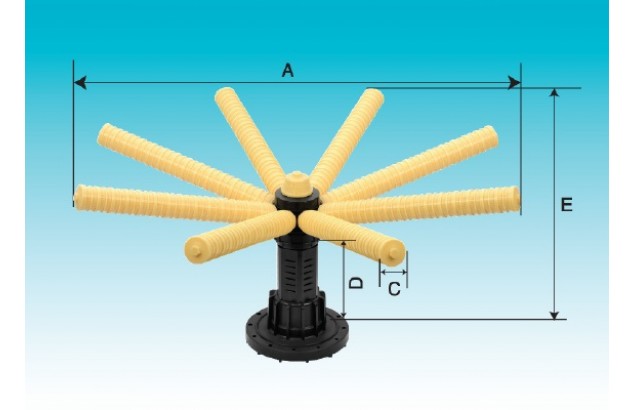

Serial No. Item No. SIZE (mm) Connector size Diameter(inches/mm) Bottom opening
A B C D E Slot Size
TA-508-36  750 350 53 265 454 0.2/0.3/0.4mm Ø90(Ø89) 36" (Ø900) 6"FLG
TA-508-40  870 412 53 265 474 0.2/0.3/0.4mm Ø90(Ø89) 40" (Ø1000) 6"FLG
TA-508-48  985 475 53 265 482 0.2/0.3/0.4mm Ø90(Ø89) 48" (Ø1200) 6"FLG
TA-508-65  1225 600 53 265 514 0.2/0.3/0.4mm Ø90(Ø89) 56"~65" (Ø1400~Ø1600) 6"FLG
TA-508-80  1345 660 53 265 529 0.2/0.3/0.4mm Ø90(Ø89) 65"~80" (Ø1600~Ø2000) 6"FLG
