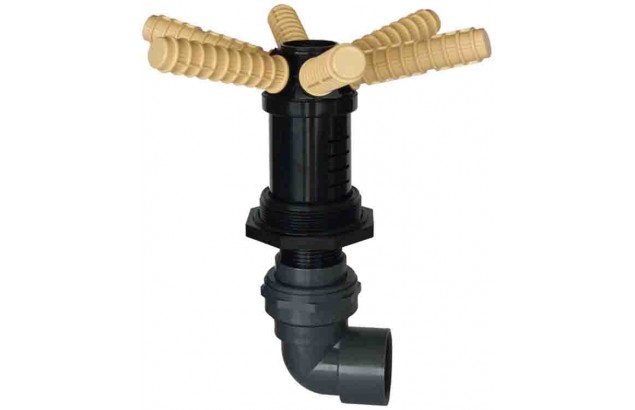

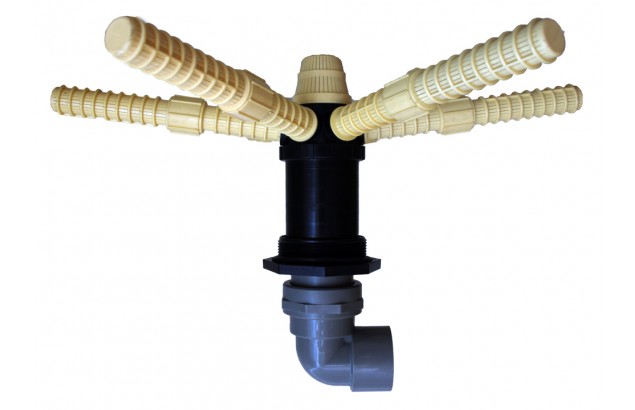

6 Kollu Ahtapot Difüzör 506
Yandan Montaj için Alt Difüzör

Tank Aksesuarları

Model SIZE (mm) Diameter (inches/mm) Slot Size Bottom opening
A B C D E F
TA-506-21 350 153 35 Ø60 200 227 18"～21" (Ø450～Ø550) 0.25~0.3MM 4"～8"THREAD
TA-506-24 445 200 35 Ø60 215 241 24" (Ø600) 0.25~0.3MM 4"～8"THREAD
TA-506-30 590 281 35 Ø60 235 261 30" (Ø750) 0.25~0.3MM 4"～8"THREAD
TA-506-36 680 327 35 Ø60 245 272 36" (Ø900) 0.25~0.3MM 4"～8"THREAD
TA-506-40 835 406 35 Ø60 262 289 40" (Ø1000) 0.25~0.3MM 4"～8"THREAD
