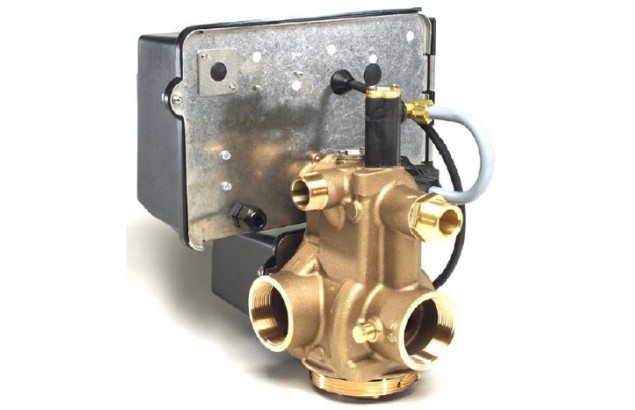

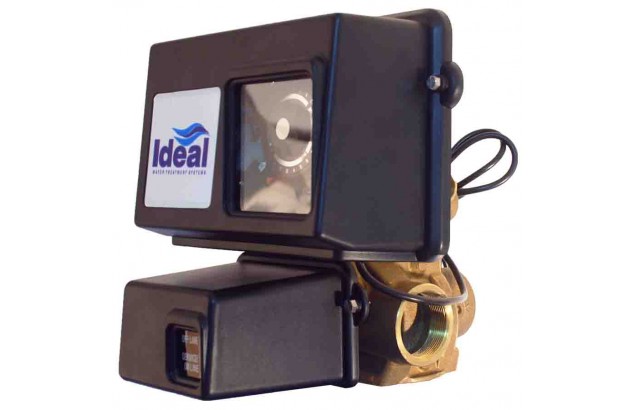

Fleck 2910

Fleck Valfler

Technical characteristics

Tank size (inches)
14 -16 - 21 - 24 - 30 - 36
Service flow (m3/h)   24.00
Backwash flow (m3/h)  7.90
Inlet / Outlet (inches)   2

  2910

Valve material Brass
Inlet/Outlet 1
Service flow rate (m3/h / gpm) 24 /105
Backwash flow rate 7,9 / 35
Softener tank size  14" - 36"
Filter tank size 14" - 24"
Cycles Cycles: 5
Electrical rating Electrical rating: 24 v, 110 v, 220 v - 50 Hz, 60 Hz
Distributor pilot  Distributor pilot: 1-1/2" O.D.
Drain line Drain line: 1" NPTM
Injector brine system Injector brine system:
Brine line 1600 & 1650 - 3/8"
1700 & 1710 - 1/2"
Mounting base Mounting base: 4" - 8 UN
Height from top of tank Height from top of tank: 12"
Hot water  •
Timer type 3200/SXT/ET/NXT
Adjustable cycles  •
NBP piston  •
Duplex  •
Multiplex  •
