6 Kollu Alt Difüzör

Ekipmanlar > Tanklar > Tank Aksesuarları > 6 Kollu Alt Difüzör

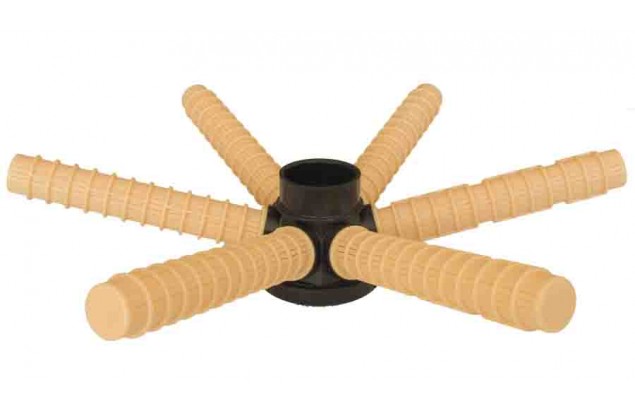

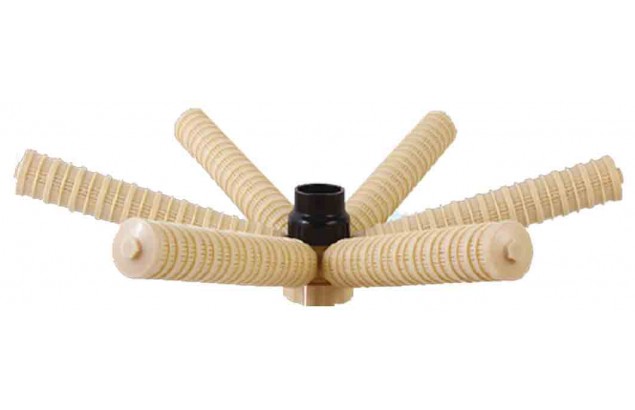

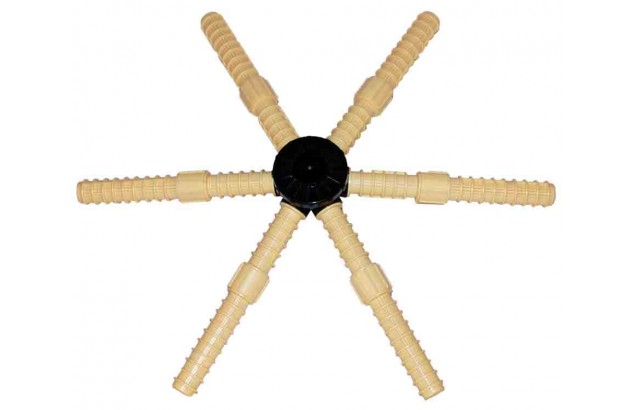

6 Kollu Alt Difüzör
Üstten Montaj Valfler için

Tank Aksesuarları

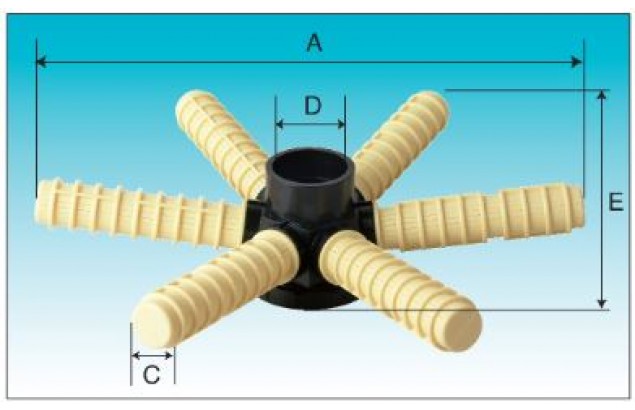

Serial No. item no. SIZE (mm) Diameter    (inches/mm) Top   opening
A B C D E slot size
TA-14-06-21  350 153 35 50/42 100 18"～21" (Ø450～Ø550) 0.25~0.3MM 4"～8" THREAD
TA-14-06-24  445 200 35 50/42 110 24" (Ø600) 0.25~0.3MM 4"～8" THREAD
TA-14-06-30  590 281 35 50/42 132 30" (Ø750) 0.25~0.3MM 4"～8" THREAD
TA-14-06-36  680 327 35 50/42 145 36" (Ø900) 0.25~0.3MM 4"～8" THREAD
TA-14-06-40  835 406 35 50/42 165 40" (Ø1000) 0.25~0.3MM 4"～8" THREAD
