16 Kollu Alt Difüzör
Ekipmanlar > Tanklar > Tank Aksesuarları > 16 Kollu Alt Difüzör
16 Kollu Alt Difüzör
Üstten Montaj Valfler için
Tank Aksesuarları

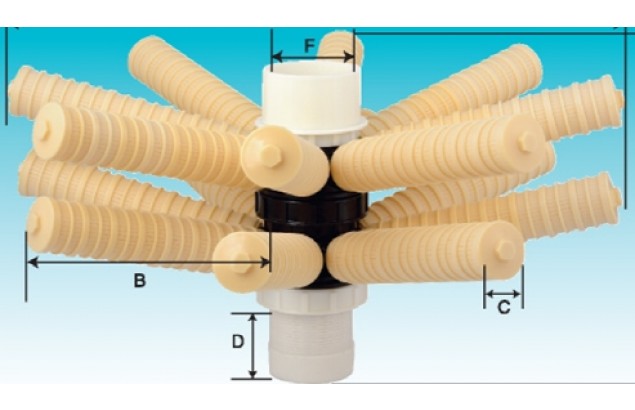

| Model | SIZE (mm) | Diameter(inches/mm) | Slot Size | Top opening | |||||
| A | B | C | D | E | F | ||||
| TA-16-06-36 | 750 | 350 | 53 | 104 | 340 | Ø90 | 36" (Ø900) | 0.2/0.3/0.4mm | 6"FLG |
| TA-16-06-40 | 870 | 412 | 53 | 104 | 360 | Ø90 | 40" (Ø1000) | 0.2/0.3/0.4mm | 6"FLG |
| TA-16-06-48 | 985 | 475 | 53 | 104 | 375 | Ø90 | 48" (Ø1200) | 0.2/0.3/0.4mm | 6"FLG |
| TA-16-06-56 | 1225 | 600 | 53 | 104 | 400 | Ø90 | 56"~65" (Ø1400~Ø1600) | 0.2/0.3/0.4mm | 6"FLG |
| TA-16-06-65 | 1345 | 660 | 53 | 104 | 415 | Ø90 | 65"~80" (Ø1600~Ø2000) | 0.2/0.3/0.4mm | 6"FLG |
